Keywords：Water flow switch, flow switch, baffle type flow switch

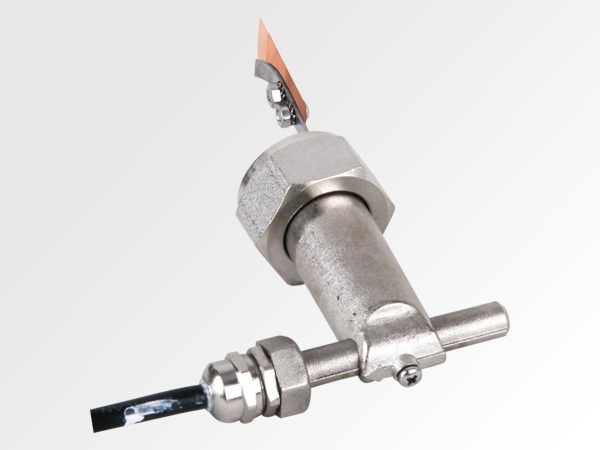

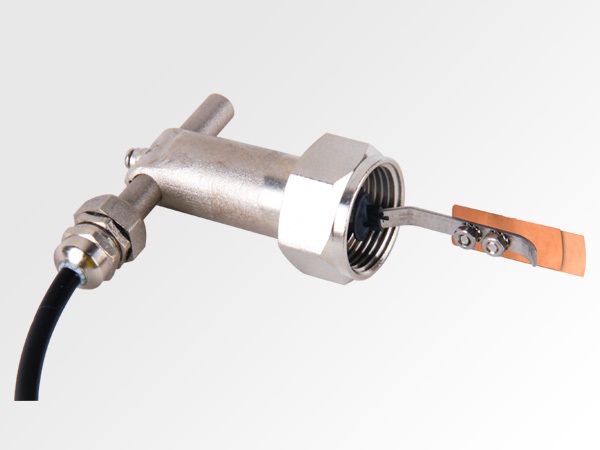

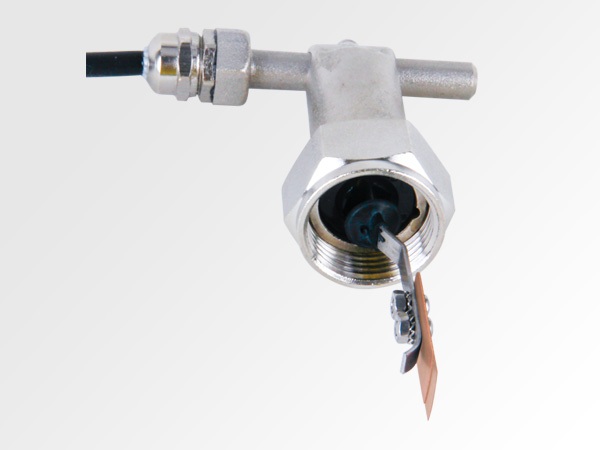

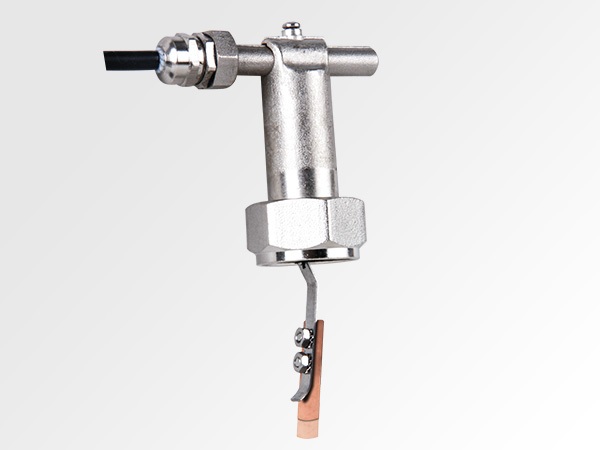

Description：The WFS21 series baffle flow switch is a new structure of flow switch developed by our company's professional flow researchers after analyzing the shortcomings of current flow switches in the market. It follows a simple and reliable design concept, greatly improving the reliability of flow switches from a structural perspective, which is incomparable to traditional target flow switches.
1. Adopting low voltage drop and high-precision design
2. High reliability and long service life
3. Features such as wide temperature range and high pressure resistance.
■ Voltage: 250V (Max.)
■ Maximum current and capacity: 1A, 50VA
■ Wiring method: Directly attach wires
■ Output: SPST magnetic sensitive switch (factory set normally open)
■ Pressure resistance: 25bar, customizable to 50bar
■ Average pressure loss: 0.01 bar (at maximum flow rate)
■ Working temperature: -40... 90 ℃ (customizable to 120 ℃)
■ Shell protection level: IP67
■ Material: Liquid receiving shell: Nickel plated brass

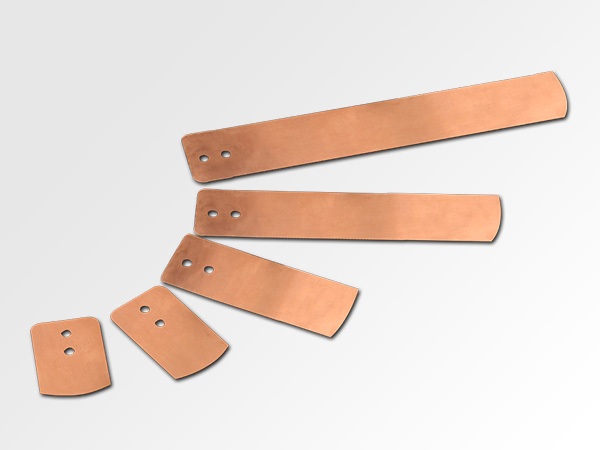

Shield: beryllium copper sheet
